CNC Laser machine series


DT-1560 500W/750W/1000W 6m steel tube &double sheets Fiber laser cutting machine

Introduction:DT-1560 500W/750W/1000W 6m steel tube &double sheets Fiber laser cutting machine, square or round steel pipe cutting , 6mm length , 6m double table for steel sheet cutting
DT-1560 500W/750W/1000W 6m steel tube &double sheets Fiber laser cutting machine

DESTINY-CNC TECH ideas: To be your counselor, to be your partner, to be your friends.

DT-1560 500W/750W/1000W 6m steel tube &double sheets Fiber laser cutting machine


Machine parameters


Machine Model

DT-1560 500w/750w/1000w

Working area

1500mm *6000mm (59 inch *236 inch)

Laser power

500W/750W/1000w Raycus or IPG  brand fiber laser device

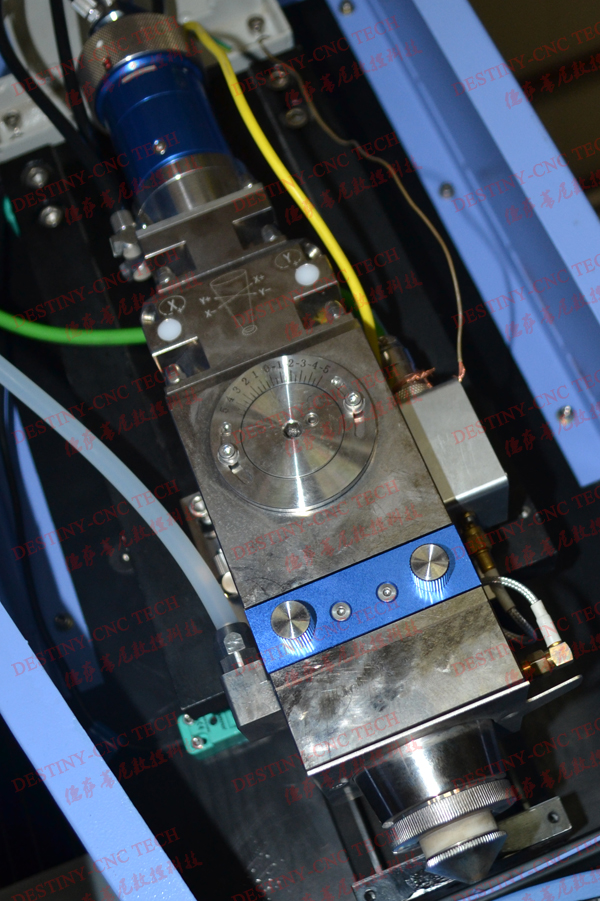

laser head

Imported Germany PRECITEC Laser head, with auto sensor, adjust focal distance automatically

Cooling system

Sunrise water cooling chiller

Rated power

10-100%

Laser wavelength

1080nm

X,Y-axis location accuracy

±0.01mm

X,Y-axis fast moving speed

80m/min

X,Y-axis max cutting speed

45m/min

Min. cutting line width

0.02mm

Max. cutting thickness

Stainless steel 0.1-10mm     Carbon steel 0.1-12mm

Graphic format supported

AI PLT DXF BMP DST DWG LAS DXP

Power requirements

380 V 50/60HZ

After-sale service

Technician available for training and installation

Machine configurations

Term

Model

Parts

Amount

Remark

1

DT- FIBER 3015 Auto-changed laser machine

Machine bed

1 set

DESTINY-TECH

2

Fiber laser source

1 set

China Raycus or Germany IPG

3

Laser head

1 set

PRECITEC from Germany

4

Water chiller

1 set

SUNRISE 3p

5

Servo motor

3 sets

Panasonic

6

Control system

1 set

PA 8000

7

Rack pinion

2 sets

Taiwan HIWIN

8

Valid working area

1500 * 3000mm

Double exchange platform

Working area can optional

Machine Features

DT-3015 Fiber 1000w laser cutting machine adopts the most sophisticated laser source, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with high precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting.

Machine advantages

1.Good beam quality: smaller focused spot, cutting lines more sophisticated, higher efficiency, better processing quality

2. Cutting speed: 2 times the same power over carbon dioxide laser cutting machine

3. Stable performance, laser life of up to 100,000 hours

4.Electro-optical conversion rate: Fiber laser cutting machine Electrical and optical conversion rate three times higher than carbon dioxide laser, energy saving

5.Low operating costs: the machine consumes about the same carbon dioxide laser cutting machine for 20-30%

6. Low maintenance costs: no laser working gas; optical fiber transmission, without reflection lenses; may save a lot of maintenance costs

7.Convenient operation and maintenance: fiber optic transmission, no need to adjust the optical path

8.Flexible light guide effect: small, compact, easy to flexible manufacturing needs

Applicable materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum.

Application Industries
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool pro cessing, adornment, advertising, metal foreign processing various manufacturing processing industries.

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,  they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .

3. There are detail machine operation manual and video CD sent together with the machine.





If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-CNC TECH welcome you .
