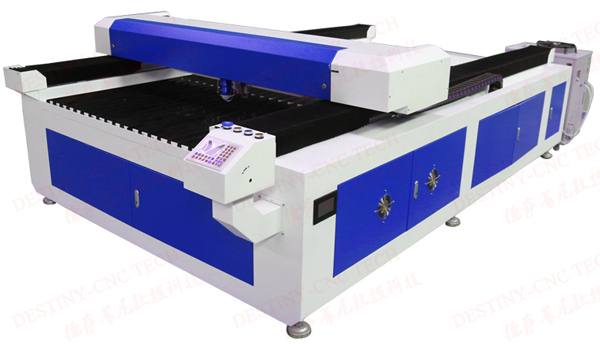

DT-1325 Mixture Nonmetal & Steel CO2 Laser cutting machine (Belts or ballscrew transmission)
Machine parameters
|
Machine Model
|
DT-1325 Mixture CO2 Laser cutting machine
|
|
Working Size
|
1300mm * 2500mm / 51.1 * 98.4 inch (X* Y axis )
|
|
Laser Power
|
150w/180w/260w/280w
|
|
Laser Type
|
Sealed CO2 glass laser tube, water-cooling ,10.6nm
|
|
Driving System
|
3-Phase Stepper Motor & Servo motor
|
|
Cutting Speed
|
0-50000mm/min (1969 inch/min)
|
|
Laser Output Control
|
1-100% software setting
|
|
Resetting Position Accuracy
|
≤±0.01
|
|
Transmission type
|
Belts transmission & stepper motor or Ballscrew &Servo
|
|
Smallest Character
|
Chinese 2.0 *2.0mm English 1.0*1.0mm
|
|
Highest Scanning precision
|
2500 DPI
|
|
Power Supply
|
220V/50Hz, 110V/60Hz,
|
|
Operating Temperature
|
0-45℃
|
|
Operating Humidity
|
5-95%
|
|
Operating System
|
DSP CNC Control System in Win XP, Win 7
|
|
Graphic Format Supported
|
BMP, PLT, AI, DST, DXF
|
|
Software Supported
|
Corel draw, Photoshop, AutoCAD, Tajima
|
|
Optional device
|
Up &down table ,Rotary device ,Red light pointer
|
|
Color separation
|
Yes
|
Machine descriptions
DT-1325 Nonmetal and steel micture laser cutting machine is made with big cutting bed body. Because some user's work is mainly cut nonmetal materials ,such as wood ,plywood ,MDF or acrylic .But for advertisement industry .Sometimes , the customer ask to cut thin steel or stainless steel board ,such as 0.5 or 1 mm thickness steel.For special fiber laser cutting machine .its price maybe little high for customer and it can't process nonmetal .So we design one mixture laser cutting machine .Its price is suitable and it can mainly cut nonmetal materials .Also can cut thin stainless steel or other steel . This is better choice for some customer. We adopts special auto following laser head and special transmission.You can choose Belts transmission .Also can choose ballscrew transmission .And the motor will be servo motor . It's precision will be higher . We adopt RECI brand glass CO2 laser tube . It's with good warranty .In addition , the machine operation is similar with normal CO2 laser machine .So it's very convenient . That's a good choice to use this machine .
Suitable materials
Die board ,wood and plywood board ,Acrylic, less than 1.5 mm stainless steel or other steel, Plexiglass, MDF ,leather, film, rubber,plastic, cloth, component materials etc.
Suitable Industry
Die board processing ,double faced adhesive material processing, printing and packing ,advertising decoration , furniture, mode, art and craft etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-CNC TECH welcome you .
