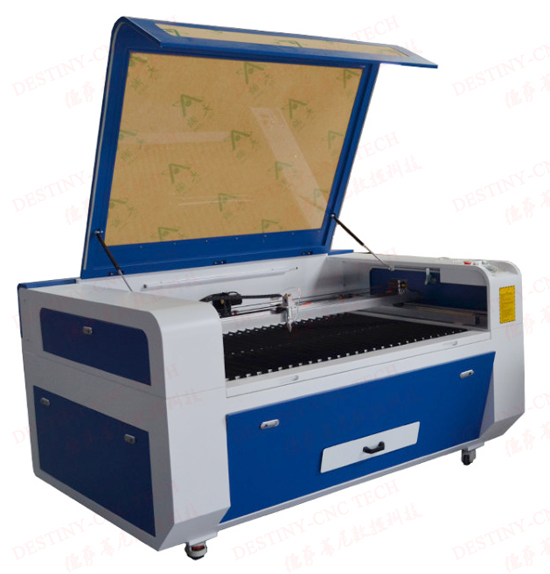

DT-1490 CO2 Laser cutting machine (Belts or ballscrew transmission)
Machine parameters
|
Machine Model
|
DT-1490 double doors
|
|
Working Size
|
1400mm *900mm / 55.1 * 35.4 inch (X*Y axis )
|
|
Laser Power
|
80w/100w/150w/180w
|
|
Laser Type
|
Sealed CO2 glass laser tube, water-cooling ,10.6nm
|
|
Driving System
|
3-Phase Stepper Motor & Servo motor
|
|
Cutting Speed
|
0-50000mm/min (1969 inch/min)
|
|
Engraving Speed
|
0-60000mm/min (2362 inch/min)
|
|
Laser Output Control
|
1-100% software setting
|
|
Resetting Position Accuracy
|
≤±0.01
|
|
Transmission type
|
Belts transmission & stepper motor
|
|
Smallest Character
|
Chinese 2.0 *2.0mm English 1.0*1.0mm
|
|
Highest Scanning precision
|
2500 DPI
|
|
Power Supply
|
220V/50Hz, 110V/60Hz,
|
|
Operating Temperature
|
0-45℃
|
|
Operating Humidity
|
5-95%
|
|
Operating System
|
DSP CNC Control System in Win XP, Win 7
|
|
Graphic Format Supported
|
BMP, PLT, AI, DST, DXF
|
|
Software Supported
|
Corel draw, Photoshop, AutoCAD, Tajima
|
|
Optional device
|
Up &down table ,Rotary device ,Red light pointer
|
|
Color separation
|
Yes
|
Machine descriptions
DT-1490 model laser cutting machine is one bigger size model laser machine. The worker can process on these double doors position . The laser tube will move together the X axis frame at the same time to keep the laser stable . So it's more convenient to put the material board .And the machine body is more stable . The machine transmission system is optional . You can choose Belts and stepper motor transimission for engraving and cutting . Also you can choose Ball screw and servo motor transmission for cutting only . You can make a choice according your different material processing . This machine is better to cut thick plywood , MDF, Wood ETC. die board cutting . With this machine,cutting works will be finished only by input file into program and setting laser power.The cutting accuracy will be around ±0.05mm, this is also no problem for complex file processing.With good laser device which make very small laser point,make sure same distance cutting space.
Suitable materials
Die board ,wood and plywood board ,Acrylic, Plexiglass, MDF ,leather, film, rubber,plastic, cloth, component materials etc.
Suitable Industry
Die board processing ,double faced adhesive material processing, printing and packing ,advertising decoration , furniture, mode, art and craft etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
